(2000pcs) MS M5 Nyloc Nut for 5mm Bolts (Dia. 5mm)

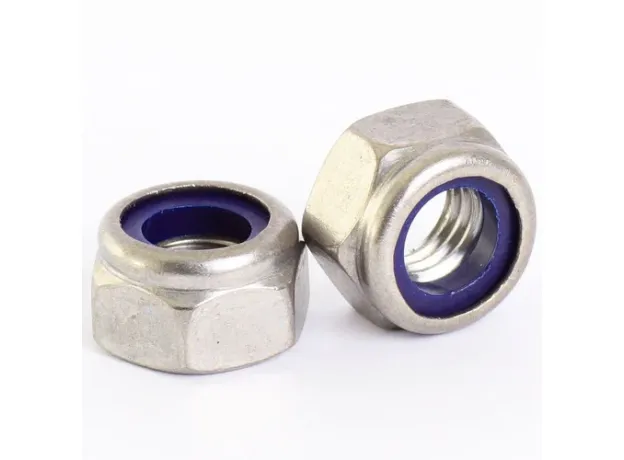

The M5 Nyloc Nut (5mm Nylon Insert Lock Nut) is a self-locking metric fastener engineered to solve the problem of vibration-induced joint failure. Designed to conform to the DIN 982 standard, this lock nut features an integrated elastic nylon ring at the top opening that firmly grips the external threads of an M5 bolt, eliminating the need for split spring washers, thread-locking fluids, or castle pins.

How the Self-Locking Mechanism Works

Unlike conventional free-spinning nuts that can work loose under continuous oscillating forces, a Nyloc nut uses prevailing torque friction. When an M5 bolt is threaded into the nut, its leading threads cut into—and elasticize—the undersized nylon ring. The displaced nylon compresses tightly against the bolt threads, creating continuous radial friction that locks the nut in place through shock, vibration, and thermal expansion cycles.

Ideal for Pivot Points and Motion Linkages

Because holding power is generated by the nylon collar rather than pure clamping torque against a flat surface, the M5 Nyloc nut can be secured at any point along a bolt's thread. This makes it the fastener of choice for roller bearings, wheel axles, moving linkages, and hinges where a standard nut would either bind the movement or spin loose over time.

Common Applications

• 3D Printers & CNC Machines: Securing V-slot roller wheels, eccentric spacers, lead screw mounts, and belt tensioners.

• Drones, RC Planes & Multirotors: Motor mounts, landing gear joints, and propeller adapter hardware subject to high-RPM vibrations.

• Robotics & Automation: Servo linkages, articulated arm pivot points, and drive wheel mounts.

• Automotive & Bicycle Maintenance: Light brackets, fender mountings, cable guides, and fairing assemblies.
