Bulk Rates(100pc) SS 1.5mm E-Type Circlip Stainless Steel (SS202)
Please sign in so that we can notify you about a reply

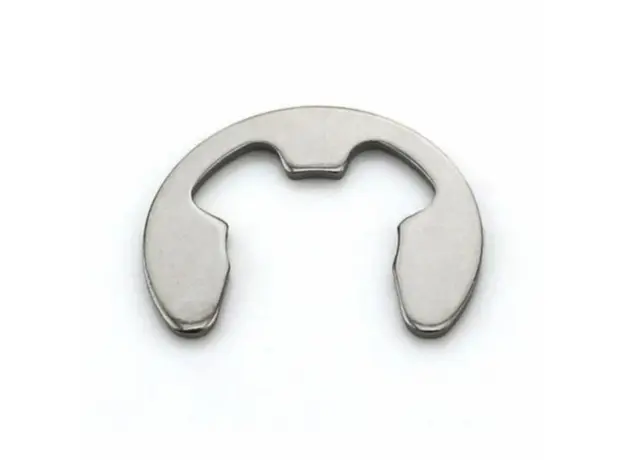

SS E-Type Circlip for 1.5mm Shaft (Pack- 100pc)
Type: E-Type Retaining Ring | Size: 1.5 mm | Material: Stainless Steel (SS202)
Product Overview:
The SS E-Type Circlip for 1.5 mm shafts is a precision-engineered external retaining ring designed to fit into shaft grooves and securely retain components in axial position. Manufactured from corrosion-resistant SS202 stainless steel, it is ideal for environments where rust resistance and long-term durability are essential.
Specifications:
-
Compatible Shaft Diameter: 1.5 mm
-
Material: Stainless Steel (SS202)
-
Type: E-Type Circlip (External)
-
Finish: Natural Stainless (Bright)
Applications:
-
Small mechanical assemblies
-
Electronics and precision instruments
-
Light-duty motors and actuators
-
Suitable for retaining miniature gears, bearings, and washers
Key Features:
-
Rust-resistant SS202 stainless steel construction
-
Maintains axial alignment in compact mechanisms
-
Smooth finish for minimal friction
-
Easy installation and removal with circlip pliers
Legend:
S - Washer width
d2 - Inner diameter
d3 - Outer diameter
a - opening Range
d1 - shaft diameter
g - chamfer
m - groove width
n - minimum length to the face of the shaft
d2 - groove diameter
| D2 | D1 | S | A | N | D3 | |
|---|---|---|---|---|---|---|
| nominal size | Min. | Max. | Min. | Max. | ||
| 0,8 | 1 | 1,4 | 0,2 | 0,58 | 0,4 | 2,25 |
| 1,2 | 1,4 | 2 | 0,3 | 1,01 | 0,6 | 3,25 |
| 1,5 | 2 | 2,5 | 0,4 | 1,28 | 0,8 | 4,25 |
| 1,9 | 2,5 | 3 | 0,5 | 1,61 | 1 | 4,8 |
| 2,3 | 3 | 4 | 0,6 | 1,94 | 1 | 6,3 |
| 3,2 | 4 | 5 | 0,6 | 2,7 | 1 | 7,3 |
| 4 | 5 | 7 | 0,7 | 3,34 | 1,2 | 9,3 |
| 5 | 6 | 8 | 0,7 | 4,11 | 1,2 | 11,3 |
| 6 | 7 | 9 | 0,7 | 5,26 | 1,2 | 12,3 |
| 7 | 8 | 11 | 0,9 | 5,84 | 1,5 | 14,3 |
| 8 | 9 | 12 | 1 | 6,52 | 1,8 | 16,3 |
| 9 | 10 | 14 | 1,1 | 7,63 | 2 | 18,8 |
| 10 | 11 | 15 | 1,2 | 8,32 | 2 | 20,4 |
| 12 | 13 | 18 | 1,3 | 10,45 | 2,5 | 23,4 |
| 15 | 16 | 24 | 1,5 | 12,61 | 3 | 29,4 |
| 19 | 20 | 31 | 1,75 | 15,92 | 3,5 | 37,6 |
| 24 | 25 | 38 | 2 | 21,88 | 4 | 44,6 |
| 30 | 32 | 42 | 2,5 | 25,8 | 4,5 | 52,6 |
Brand:
omrook
Condition:
New
Country of Manufacturer:
India
Diameter:
1.5 mm
Material:
Stainless Steel
Warranty:
None
