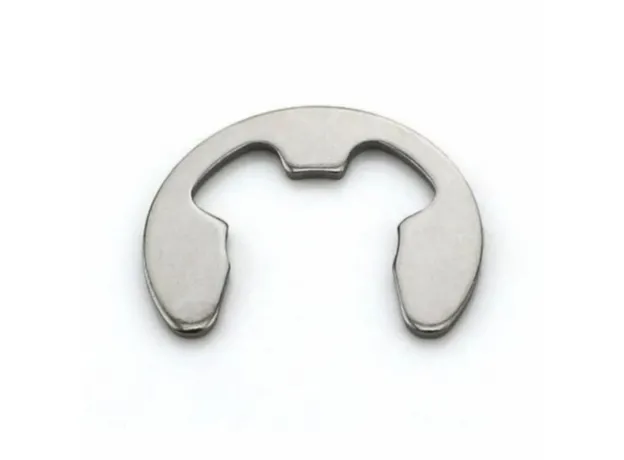

SS E-Type Circlip for 9mm Shaft (Pack- 25pc)
Type: E-Type Retaining Ring | Size: 9 mm | Material: Stainless Steel (SS202)
Product Overview:
The SS E-Type Circlip for 9 mm shafts is a high-strength external retaining ring designed to fit securely into shaft grooves and prevent axial movement of components. Made from SS202 stainless steel, it offers excellent corrosion resistance, mechanical stability, and long service life—ideal for use in harsh or high-precision environments.
Specifications:
-
Compatible Shaft Diameter: 9 mm
-
Material: Stainless Steel (SS202)
-
Type: E-Type Circlip (External)
-
Finish: Bright Stainless Steel
Applications:
-
Automotive assemblies and gear shafts
-
Electric motors and pumps
-
Machinery and control equipment
-
Ideal for holding washers, gears, and spacers in place
Key Features:
-
SS202 stainless steel ensures corrosion and wear resistance
-
Provides strong axial retention for rotating parts
-
Easy to install and remove with standard circlip pliers
-
Suitable for medium-load, repetitive-use applications
Legend:
S - Washer width
d2 - Inner diameter
d3 - Outer diameter
a - opening Range
d1 - shaft diameter
g - chamfer
m - groove width
n - minimum length to the face of the shaft
d2 - groove diameter
| D2 | D1 | S | A | N | D3 | |
|---|---|---|---|---|---|---|
| nominal size | Min. | Max. | Min. | Max. | ||
| 0,8 | 1 | 1,4 | 0,2 | 0,58 | 0,4 | 2,25 |
| 1,2 | 1,4 | 2 | 0,3 | 1,01 | 0,6 | 3,25 |
| 1,5 | 2 | 2,5 | 0,4 | 1,28 | 0,8 | 4,25 |
| 1,9 | 2,5 | 3 | 0,5 | 1,61 | 1 | 4,8 |
| 2,3 | 3 | 4 | 0,6 | 1,94 | 1 | 6,3 |
| 3,2 | 4 | 5 | 0,6 | 2,7 | 1 | 7,3 |
| 4 | 5 | 7 | 0,7 | 3,34 | 1,2 | 9,3 |
| 5 | 6 | 8 | 0,7 | 4,11 | 1,2 | 11,3 |
| 6 | 7 | 9 | 0,7 | 5,26 | 1,2 | 12,3 |
| 7 | 8 | 11 | 0,9 | 5,84 | 1,5 | 14,3 |
| 8 | 9 | 12 | 1 | 6,52 | 1,8 | 16,3 |
| 9 | 10 | 14 | 1,1 | 7,63 | 2 | 18,8 |
| 10 | 11 | 15 | 1,2 | 8,32 | 2 | 20,4 |
| 12 | 13 | 18 | 1,3 | 10,45 | 2,5 | 23,4 |
| 15 | 16 | 24 | 1,5 | 12,61 | 3 | 29,4 |
| 19 | 20 | 31 | 1,75 | 15,92 | 3,5 | 37,6 |
| 24 | 25 | 38 | 2 | 21,88 | 4 | 44,6 |
| 30 | 32 | 42 | 2,5 | 25,8 | 4,5 | 52,6 |
Brand:
omrook
Condition:
New
Country of Manufacturer:
India
Diameter:
9 mm
Material:
Stainless Steel
Warranty:
None
